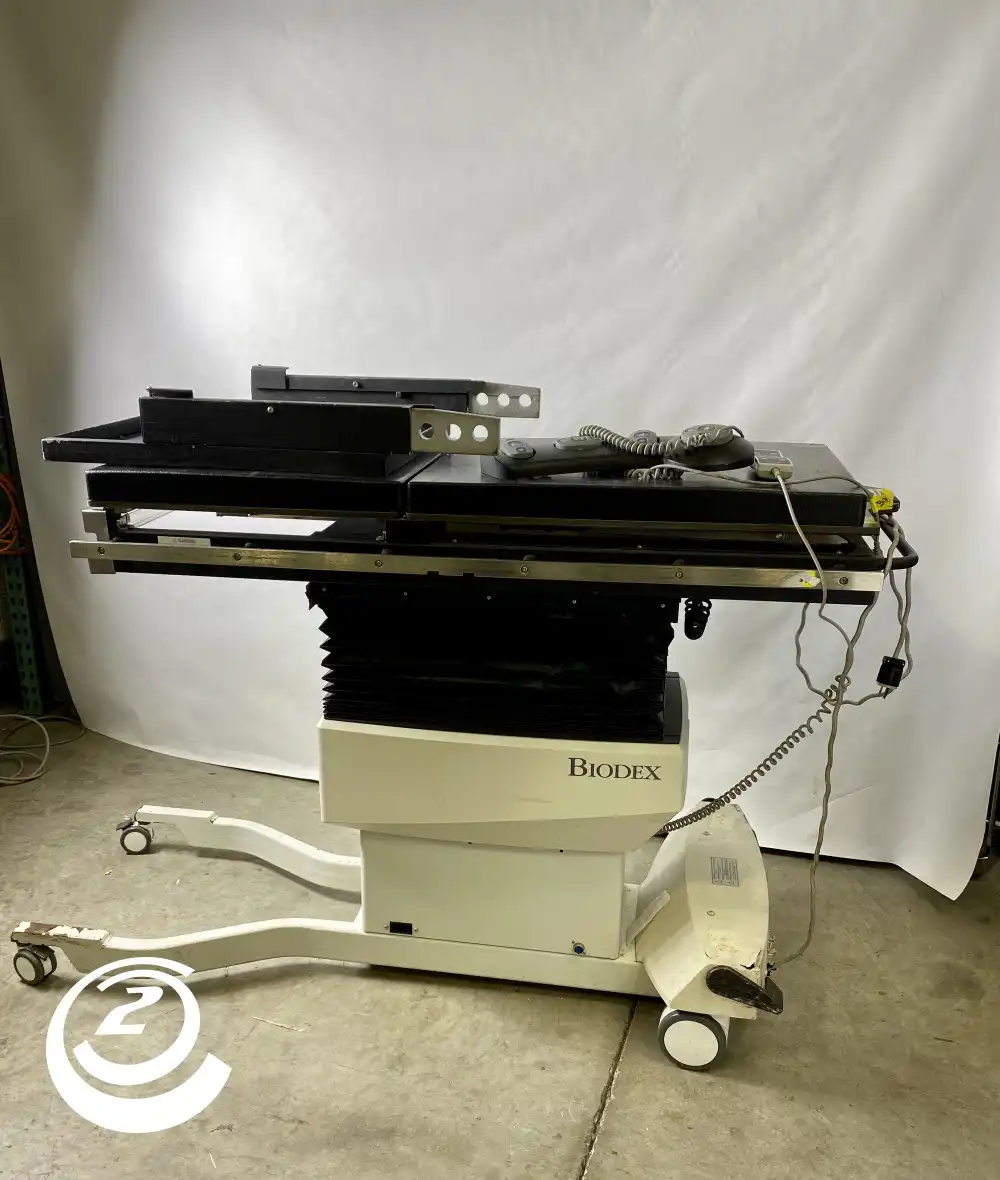

ID: 5328

Description: Specifications:

Dimensions:
Dimensions: 84.5" L x 25.5" W with OR accessory rails
Tabletop: 53" L x 21" W; 84" L with extension
Lightweight Extension (for patient transfer only, not for imaging.): 26.5" L x 21" W
Radiolucent Extension: 31" L x 25.5" W with OR accessory rails
Radiolucent Area: 54" L x 17.5" W
Tabletop Material: Three Fiberesin™ sections - each with individual 2" mattress
Mattress: Individual, seamless, 2" thick, one for each section
Motions:
Height Adjustable: 34" to 43.5"
Tabletop X Motion (head-to-toe): 20"
Tabletop Y Motion (side-to-side): 10"
Trendelenburg: 0° to 20°
Reverse Trendelenburg: 0° to 20°
Lateral Roll: 0° to 20°
Fowler Positioning: Adjusts from 0° to 80° with touch handle lock/unlock
Controls: Hand Control and Foot Control: activates all motions
Wheels
Head End Locking Brakes and Swivel Casters
Foot End Individual Locking Casters
Accessory Rails: Standard OR accessory rails 1.125" x .375" on table (rails also on table imaging extension)
Patient Restraints: Two body straps, two ankle straps
Finish: Powder coat
Patient Capacity:
In urologic position: 500 lb
In use with radiolucent extension: 400 lb
Weight tested to four times the patient load rating
Power: 115 VAC and Battery. Battery automatically charges when table is plugged in. An additional battery can be charged with optional wall-mounted charger.
Certifications: ANSI/AAMI ES60601-1:2005 +C1 (2009) +A1 (2012) +A2 (2010); CAN/CSA C22.2 No: 60601-1:14; CAN/CSA-C22.2 NO. 60601-2-46:12; IEC 60601-1-2-46:2016.
CDRH registered and FDA Device Listed
Warranty: Two years parts and labor
Optional:
X-Ray Film Tray: Removable film cassette tray for 14" x 17" film with cassette mask for 10" x 12" film. Film cassette tray can be removed from either side of the table.
X-Ray Grid: Removable X-Ray grid, 103 line, 8:1 ratio

Serial Number: ---

Category: Surgical Tables

SubCategory: C-Arm

Condition: Good
