ID: 8475

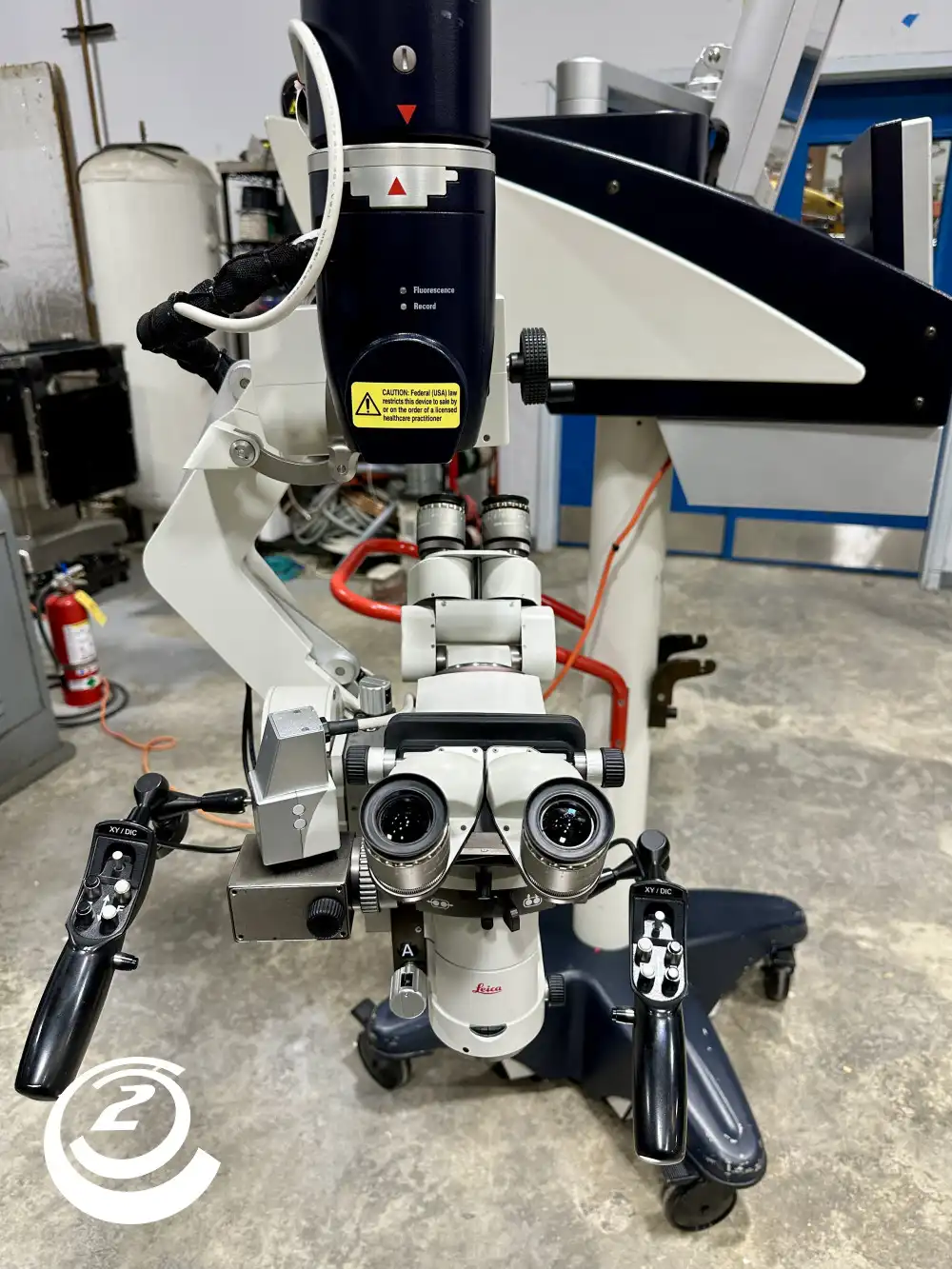

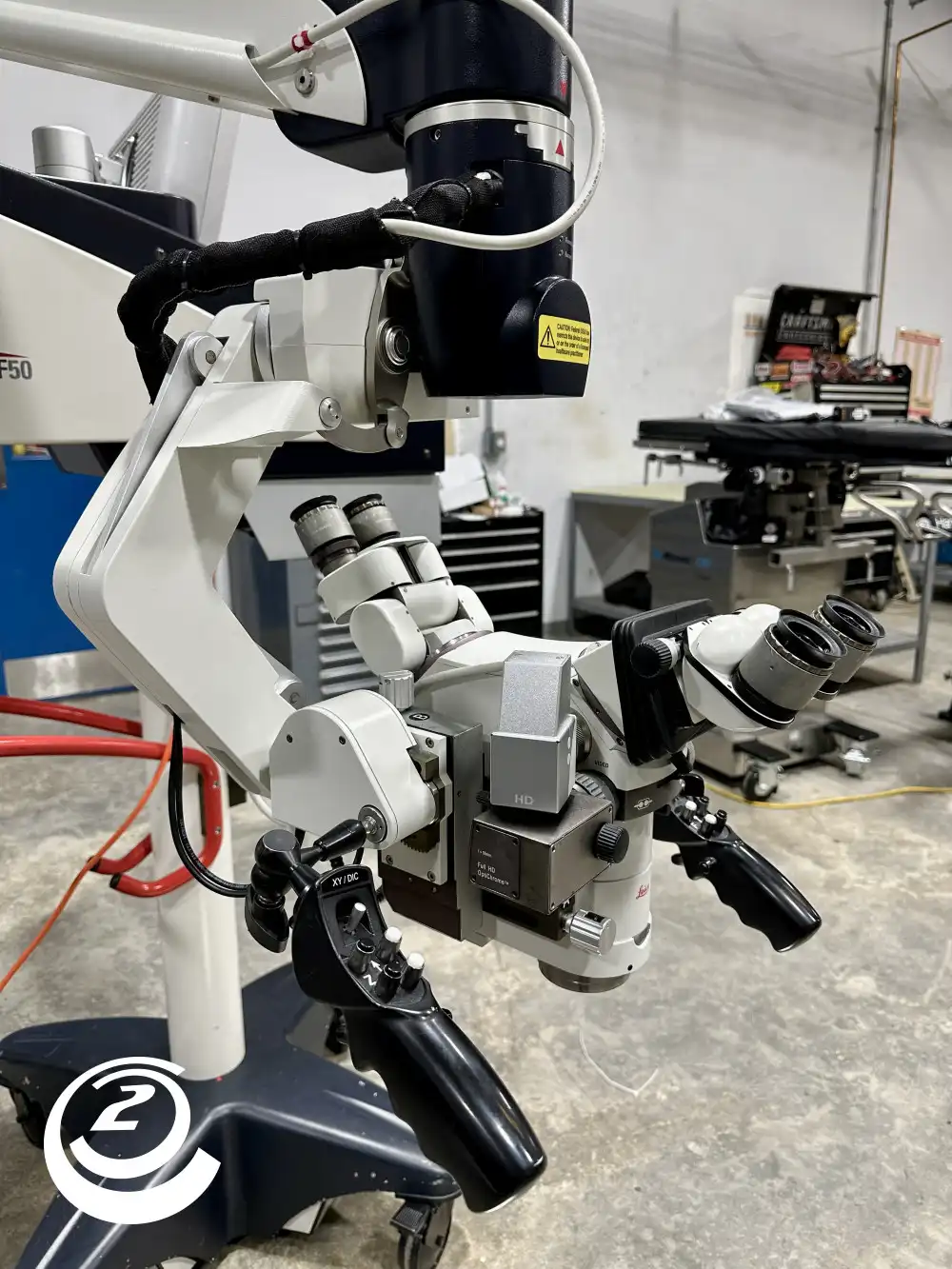

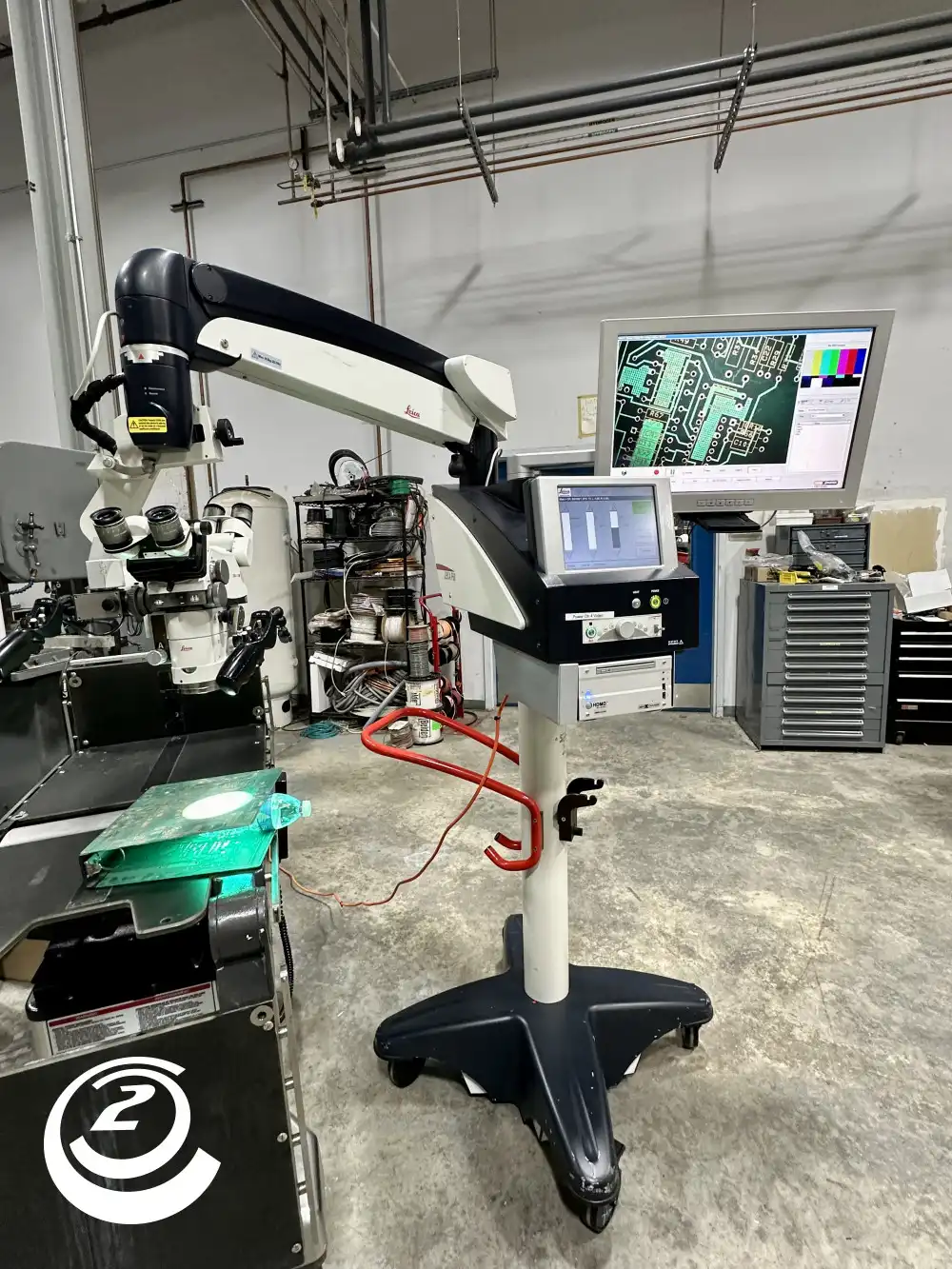

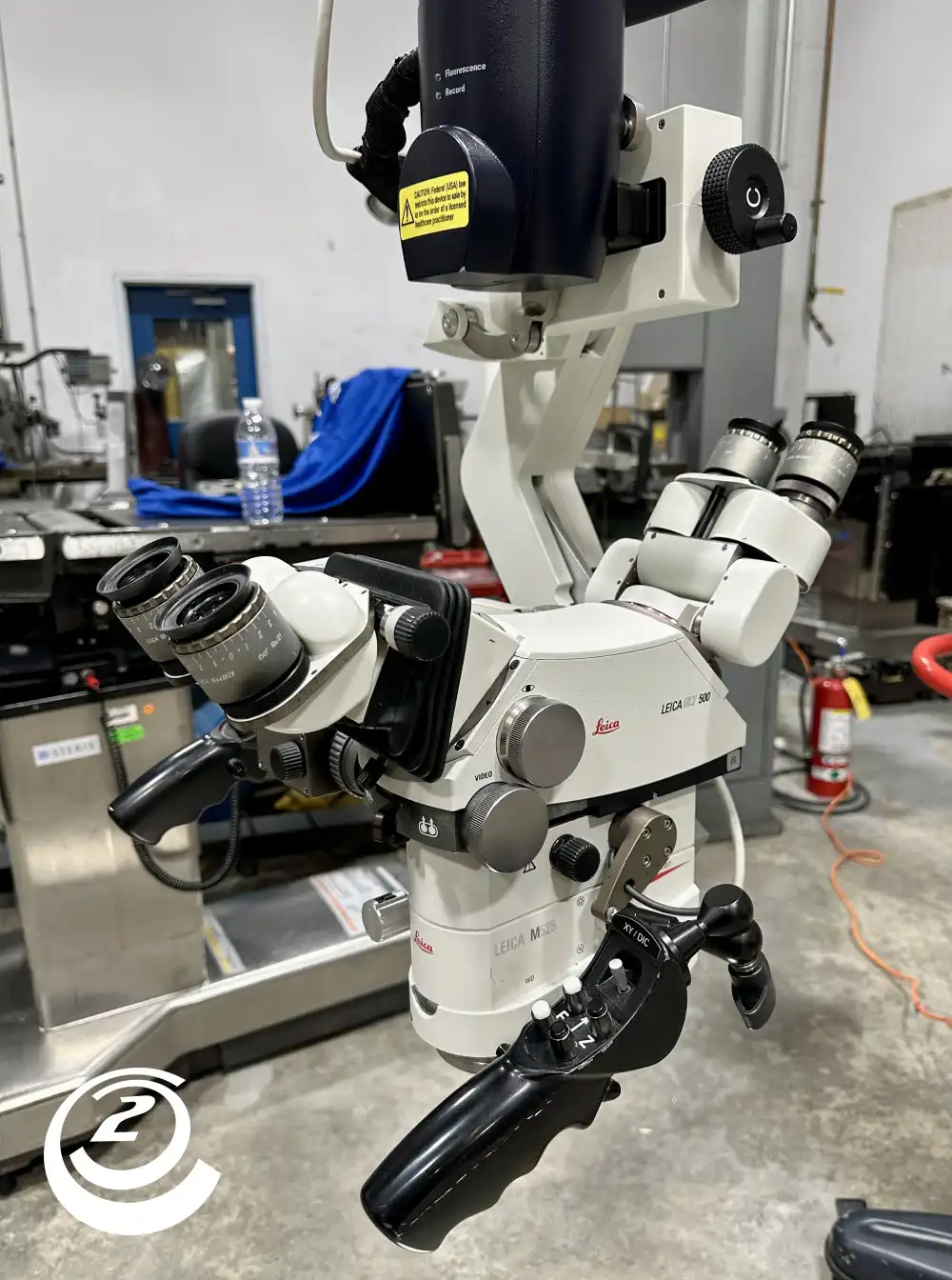

Leica M525
Description: Leica M525 Surgical Microscope F50 stand for sale, for Spine Surgery Dual Binocular, with Assistant's microscope, Leica ULT500 Bridge Leica 10730542 Camera for Recording 15” Display
multi-purpose surgical microscope combining cost-efficiency and convenience.
The well-proven microscopic optical system Leica M525 in combination with the new Leica F50 floor stand and special accessories - XY positioning module, FL800 fluorescent module, expanding front WD lens f = 218-535 mm, video system holder, etc. engineering, ideally suited to the current needs of ENT and plastic reconstructive surgery.
Such as the fluorescence module Leica FL800, BrightCare, HD documentation, and others, make it the ideal microscope for procedures in Neurosurgery, Spine, Otolaryngology, and Plastic Reconstructive.
Leica M525 Surgical Microscope F50 stand Technical Specifications
M525 Surgical Microscope:
Optics rotation: 540
Lateral tilt: 45 left / 45 right
Frontal tilt: -30 / +120
Locks: 1 lock for A / B-axis, 1 lock for C-axis
Indicator: LED for displaying fluorescence mode, LED for displaying video recording mode
Block-XY (optional): Motorized, positioning range 62? 62 mm, with automatic reset
F50 Floor-Stand:
A type: Manual balancing of the swing arm and optical block holder
Control block: The second generation of Leica intuitive touch panel technology. Latest electronic controls for continuous monitoring of all micromotor functions and light intensity. The data is displayed on the LCD. Built-in BrightCare ™ technology: synchronizes light intensity and changing working distance. Intelligent setting system ISUS, menu control based on unique software, built-in electronic self-diagnostics and user support. Software independent light and power switch. Indicator for main / backup lighting and fluorescence mode. Open architecture for future software development
Pistol grips: 10-functional handles, control of the zoom position, focusing, control of 6 electromagnetic locks, side button for programming a user-selected lock, motorized side tilt and XY-positioning, control of DI C500 functions. Except for the unlock button for all locks, the rest of the buttons are freely programmable
Foot switch: 12 function pedal
Integration of documentation: Prepared for integration with video and digital recording systems. Open architecture
Connectors: Numerous built-in connectors for video, IGS and control data. Internal power supply DC 12V, DC 19V and AC connections
Maximum load: 10 kg accessories for the microscope
Monitor holder: Length 500 mm, flexible arm with 2 axes for rotation and tilt, required for attaching an additional video monitor
Coating: AgProtect antibacterial coating
Maximum projection of the bearing bar: 1510 mm
Vertical travel range: 795 mm
Minimum transport height: 1950 mm
Weight: 360 kg (maximum configuration)
Accessories:
Leica ULT500: 180 stereo bridge, 40% luminous flux each for the surgeon and the assistant, 20% luminous flux for the lateral assistant or video system
Assistant's microscope: Double stereo bridge 70-30%, stereo attachment for the second observer to the beam splitter
beam splitter: 50-50% or 70-30%
Binocular tube: Variable tilt angle 0-180, variable tilt angle 30-150
Video adapter: Handheld Leica F 55-107mm with fine focus, Leica Remote F 55-107mm with fine focus, Zoom 3:1 F 35-100mm with precise focusing, Dual Leica NIR F 60.6-79.5mm with precise focusing
Image projection: Leica DI C500 - dual projection head for displaying correlated and uncorrelated data with a high resolution of 1024 x 768 pixels, 256 grayscale
IGS interface/ compatibility: Open architecture for IGS systems
Fluorescence (optional): Leica FL800
Asepsis: Sterilizable protective glass on the lens; sterilizable protective components for all handles, covers
Laser: Adapters supplied by laser manufacturers
Resources
multi-purpose surgical microscope combining cost-efficiency and convenience.
The well-proven microscopic optical system Leica M525 in combination with the new Leica F50 floor stand and special accessories - XY positioning module, FL800 fluorescent module, expanding front WD lens f = 218-535 mm, video system holder, etc. engineering, ideally suited to the current needs of ENT and plastic reconstructive surgery.
Such as the fluorescence module Leica FL800, BrightCare, HD documentation, and others, make it the ideal microscope for procedures in Neurosurgery, Spine, Otolaryngology, and Plastic Reconstructive.
Leica M525 Surgical Microscope F50 stand Technical Specifications
M525 Surgical Microscope:
Optics rotation: 540
Lateral tilt: 45 left / 45 right
Frontal tilt: -30 / +120
Locks: 1 lock for A / B-axis, 1 lock for C-axis
Indicator: LED for displaying fluorescence mode, LED for displaying video recording mode
Block-XY (optional): Motorized, positioning range 62? 62 mm, with automatic reset
F50 Floor-Stand:
A type: Manual balancing of the swing arm and optical block holder
Control block: The second generation of Leica intuitive touch panel technology. Latest electronic controls for continuous monitoring of all micromotor functions and light intensity. The data is displayed on the LCD. Built-in BrightCare ™ technology: synchronizes light intensity and changing working distance. Intelligent setting system ISUS, menu control based on unique software, built-in electronic self-diagnostics and user support. Software independent light and power switch. Indicator for main / backup lighting and fluorescence mode. Open architecture for future software development
Pistol grips: 10-functional handles, control of the zoom position, focusing, control of 6 electromagnetic locks, side button for programming a user-selected lock, motorized side tilt and XY-positioning, control of DI C500 functions. Except for the unlock button for all locks, the rest of the buttons are freely programmable
Foot switch: 12 function pedal
Integration of documentation: Prepared for integration with video and digital recording systems. Open architecture
Connectors: Numerous built-in connectors for video, IGS and control data. Internal power supply DC 12V, DC 19V and AC connections
Maximum load: 10 kg accessories for the microscope
Monitor holder: Length 500 mm, flexible arm with 2 axes for rotation and tilt, required for attaching an additional video monitor
Coating: AgProtect antibacterial coating
Maximum projection of the bearing bar: 1510 mm
Vertical travel range: 795 mm
Minimum transport height: 1950 mm
Weight: 360 kg (maximum configuration)
Accessories:
Leica ULT500: 180 stereo bridge, 40% luminous flux each for the surgeon and the assistant, 20% luminous flux for the lateral assistant or video system
Assistant's microscope: Double stereo bridge 70-30%, stereo attachment for the second observer to the beam splitter
beam splitter: 50-50% or 70-30%
Binocular tube: Variable tilt angle 0-180, variable tilt angle 30-150
Video adapter: Handheld Leica F 55-107mm with fine focus, Leica Remote F 55-107mm with fine focus, Zoom 3:1 F 35-100mm with precise focusing, Dual Leica NIR F 60.6-79.5mm with precise focusing
Image projection: Leica DI C500 - dual projection head for displaying correlated and uncorrelated data with a high resolution of 1024 x 768 pixels, 256 grayscale
IGS interface/ compatibility: Open architecture for IGS systems
Fluorescence (optional): Leica FL800
Asepsis: Sterilizable protective glass on the lens; sterilizable protective components for all handles, covers
Laser: Adapters supplied by laser manufacturers
Resources
Serial Number: ---
Category: Surgical Microscopes
SubCategory: Neuro & Spine
Condition: Good
